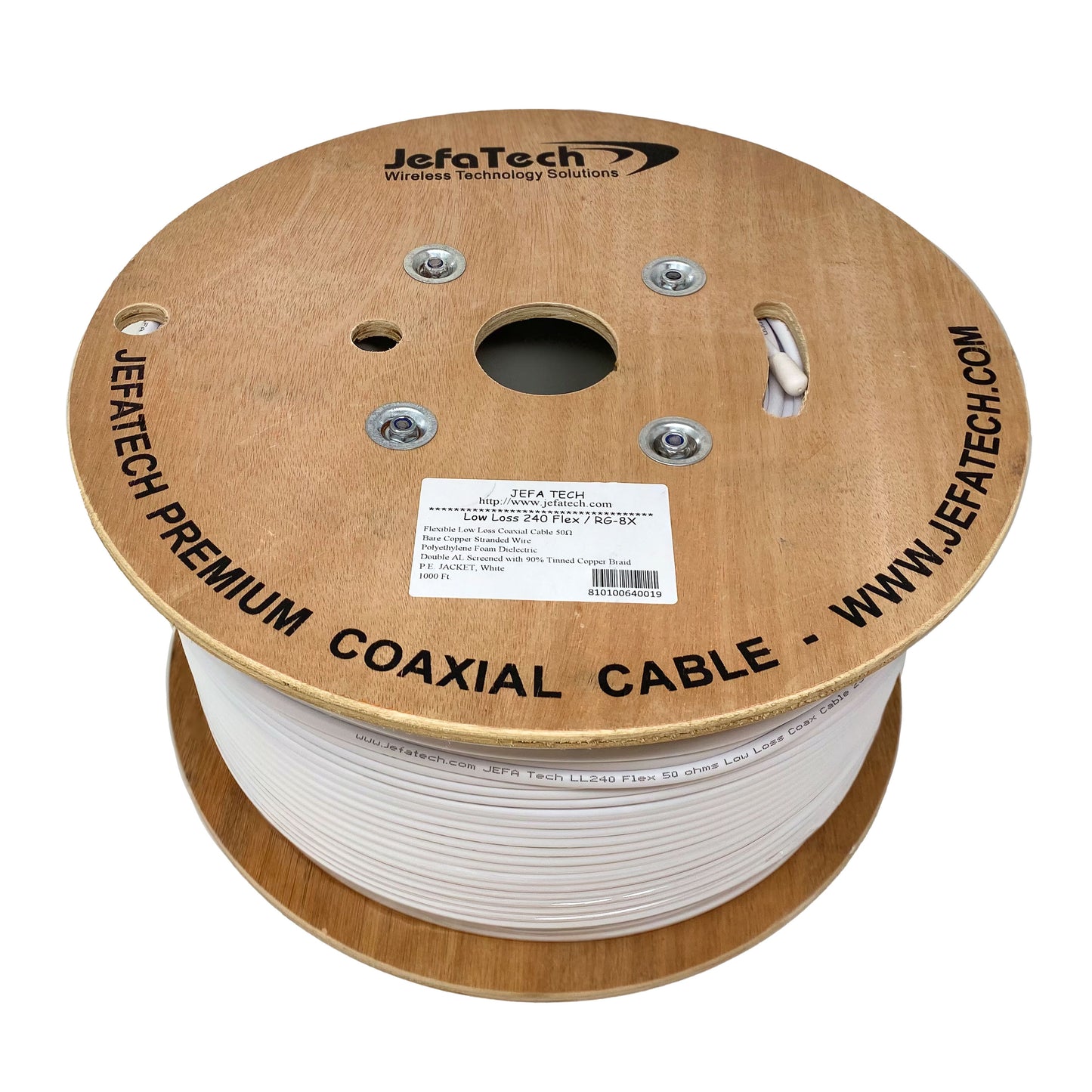

JEFA Tech LL240-FLEX / Premium RG-8X / White Jacket

JEFA Tech LL240-FLEX / Premium RG-8X / White Jacket

SKU / Part Number:

LL240F-W-B1000

$399.95
$399.95 $0.00

22 in stock - more available with short lead time

Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you!

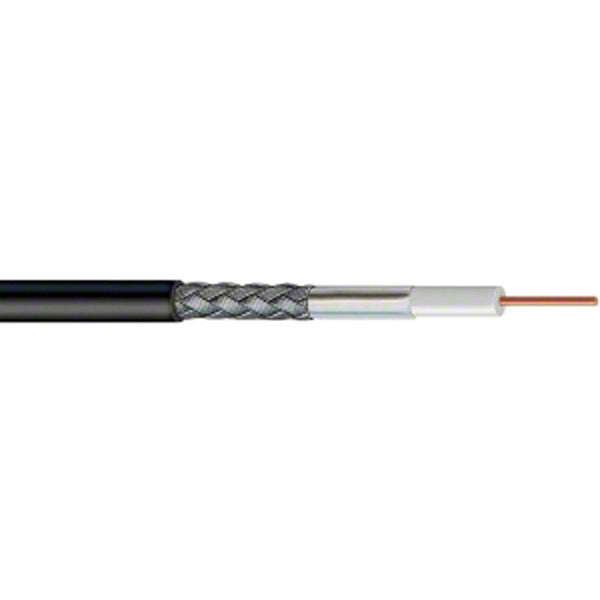

JEFA Tech Low Loss 240 FLEX is ideal for portable operation when small cable size and flexibility is important. It has signal lower loss and is more flexible as compared to Low Loss 195. It has an overall outside diameter of 0.240 inches. It features a stranded copper center conductor which will not break under repeated motion and provides greater flexibility, a foam dielectric and double shielding for low signal loss and interference rejection, and a UV protected, Polyethylene jacket.

  • Lightweight, Flexible
  • WHITE Polyethylene Jacket with UV Protection
  • Stranded Center Conductor
  • 90% tinned copper braid, plus 100% aluminum foil shield

Note: JEFA Tech Low Loss 240 FLEX and JEFA Tech Premium RG-8X is the same cable

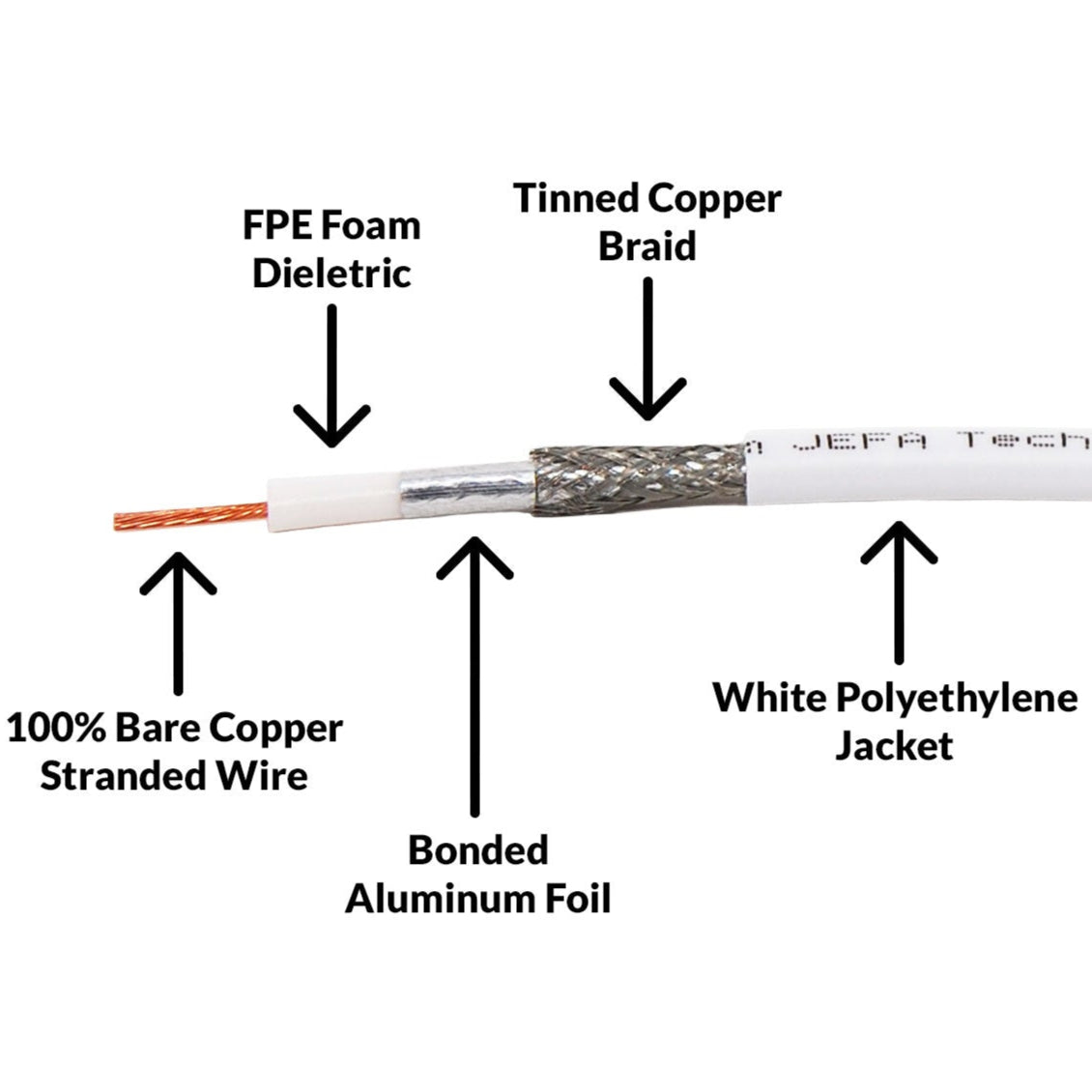

Technical Details:
  • Overall Diameter - 0.240"
  • 100% Bare Copper Stranded Wire Center Conductor - 19 strands
  • 0.154" FPE Foam Insulation
  • 1st Shield - Bonded Alumimum Foil
  • 2nd Shield - Tinned Copper Braid
  • Outer Jacket - UV Protected Polyethelene (PE)
  • Bending Radius 1/2" installed, 2" repeated
  • Impedence 50 ohms
  • Dielectric Constant 1.5
  • Velocity Factory 84%
  • Capacitance 24.38
  • Life Expectancy 20+ Years
  • Direct Burial Rated

Frequency (MHz) Band Loss (dB/100ft) Power (Watts)
1 160 meters 0.290 6860
3.5 80 meters 0.544 3660
4 75 meters 0.582 3420
5.3 60 meters 0.670 2970
7 40 meters 0.771 2490
10 30 meters 0.922 2160
14 20 meters 1.092 1820
18 17 meters 1.239 1610
21 15 meters 1.339 1490
27 11 meters 1.520 1310
28 10 meters 1.548 1290
50 6 meters 2.073 960
145 2 meters 3.555 560
