JEFA Tech LL400-FLEX Low Loss 400 FLEX Coax

JEFA Tech LL400-FLEX Low Loss 400 FLEX Coax

SKU / Part Number:

LL400FLEX-BTF

$1.29
$1.29 $0.00

Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you!

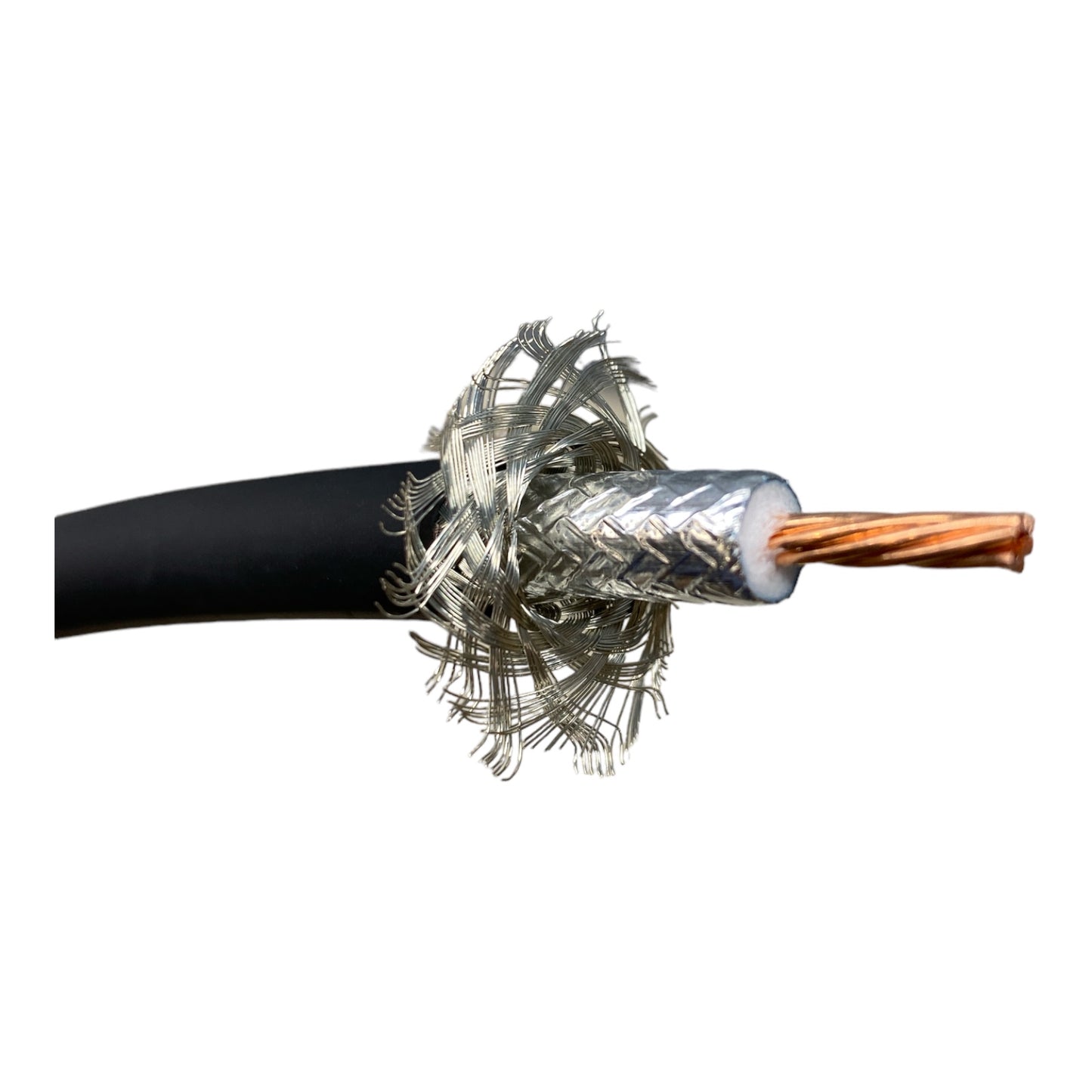

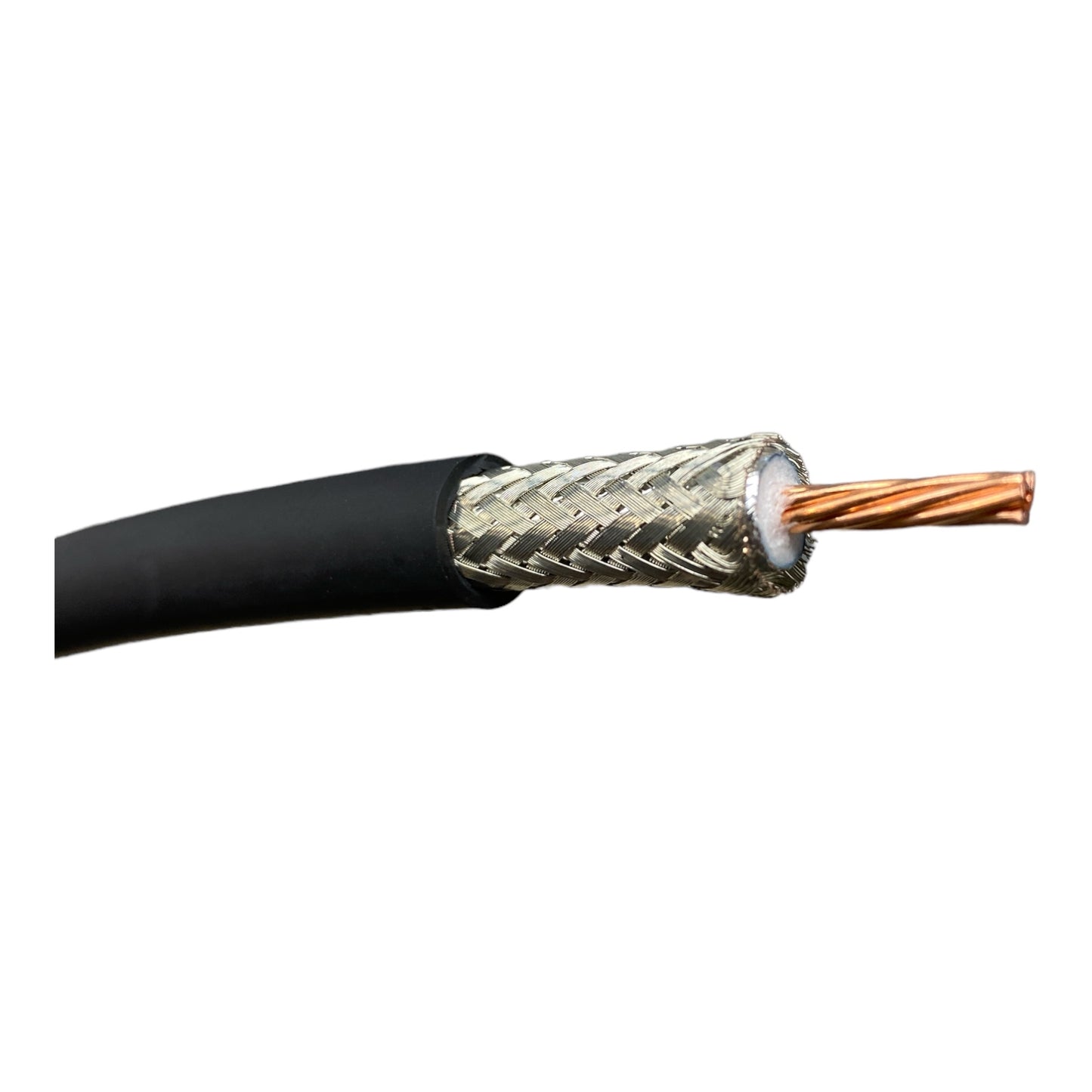

JEFA Tech Low Loss 400 Flex is a high performance alternative to Times Microwave Systems® LMR-400UF and Belden 9913F7 flexible coax cable. Low Loss 400 Flex is recommended for applications where the coax cable will be in motion, for example, beam antennas that are on a rotator, or patch cables to go from your patch panel to radio equipment. The stranded center conductor and flexible jacket allow the cable to flex easily. Continuous flexing will not compromise the integrity of the cable.

GENUINE BRAND NAME COAX CABLE
FACTORY DIRECT - WE ARE THE MANUFACTURER
PRODUCED TO STRICT QUALITY CONTROL STANDARDS
SATISFACTION GUARANTEE AND WARRANTY

BUY FACTORY DIRECT FROM JEFA TECH FOR GUARANTEED QUALITY

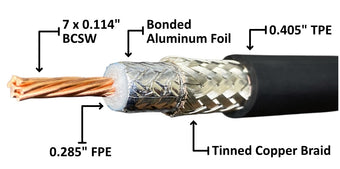

TECHNICAL SUMMARY:
  • 50 ohm impedance
  • .405" outer diameter (same as RG-8, RG-213, LMR-400, etc)
  • Lightweight, Flexible
  • Thermoplastic Elastomer Jacket - softer, more flexible than polyethelene - full waterproofing and UV Protection
  • Stranded Copper (7 x 0.036") Center Conductor
  • Double Shielded for low loss and interference rejection
  • First Shield: Bonded aluminum foil with 100% coverage
  • Second Shield: Tinned copper braid with 98% coverage
  • Foam Dieletric - adds to flexibility and performance
  • 5 year warranty, 10+ year life expectancy
  • Uses same size connectors as RG-8, RG-213, LMR-400 size cable, including standard PL-259's
CLICK HERE TO DOWNLOAD THE FULL SPECIFICATION SHEET

Comparison of Popular .405" Size Coax
Attenuation (Signal Loss) per 100/ft - (lower numbers are better)
Frequency / Band JEFA
LL400-FLEX		 JEFA
LL400		 Times
LMR-400UF		 RG-8/U
RG-213/U
7 Mhz (40 meters) 0.39 0.33 0.39 0.49
14 Mhz (20 meters) 0.55 0.46 0.55 0.70
28 Mhz (10 meters & CB) 0.79 0.65 0.79 1.01
50 Mhz (6 meters) 1.05 0.88 1.05 1.36
144 Mhz (VHF) 1.81 1.50 1.81 2.38
220 Mhz (VHF) 2.25 1.87 2.25 3.00
450 Mhz (UHF) 3.25 2.71 3.25 4.46
900 Mhz (UHF) 4.68 3.90 4.68 6.64
1.5 Ghz (MW) 6.15 5.12 6.15 8.99
2.5 Ghz (MW, WiFi) 8.12 6.76 8.12 12.32
5.8 Ghz (MW, WiFi) 12.9 10.8 12.9 21.28

Note that you are trading a small amount of performance to gain flexibility. For maximum performance in a permanent (non moving) installation, standard Low Loss 400 (LL400) with the solid center conductor is recommended. For installations that will have the cable in motion such as around a rotor, Low Loss 400 FLEX is recommended.

Are you an amateur radio operator? This cable is the same size as RG-8 and RG-213 and will accept the same connectors! Standard PL-259 connectors fit with no adapters needed. Upgrade your shack to this higher quality, much lower loss cable today! It will dramatically reduce your signal loss on VHF and UHF. It will increase your receive signal and handle more power on HF. JEFA Tech coax is used by many fine ham radio operators world wide and is even used by the experimental HAARP (High Frequency Active Auroral Research Program) in Alaska.

CB OPERATORS - Get the most bang for your buck by upgrading your coax cable to JEFA Tech LL400. Trusted by many CB operators for years.
