JEFA Tech Low Loss 240 FLEX Cable Assembly

JEFA Tech Low Loss 240 FLEX Cable Assembly

SKU / Part Number:

CA-240F-C1-C2-1

$22.43
$22.43

Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you!

JEFA Tech Low Loss 240 FLEX is ideal for portable operation when small cable size and flexibility is important. It has signal lower loss and is more flexible as compared to Low Loss 195. It has an overall outside diameter of 0.240 inches. It features a stranded copper center conductor which will not break under repeated motion and provides greater flexibility, a foam dielectric and double shielding for low signal loss and interference rejection, and a UV protected, Polyethylene jacket.

  • Lightweight, Flexible
  • 0.240 inch diameter
  • Polyethylene Jacket, UV Protection (Available in Black or White)
  • Stranded Center Conductor
  • 90% tinned copper braid, plus 100% aluminum foil shield

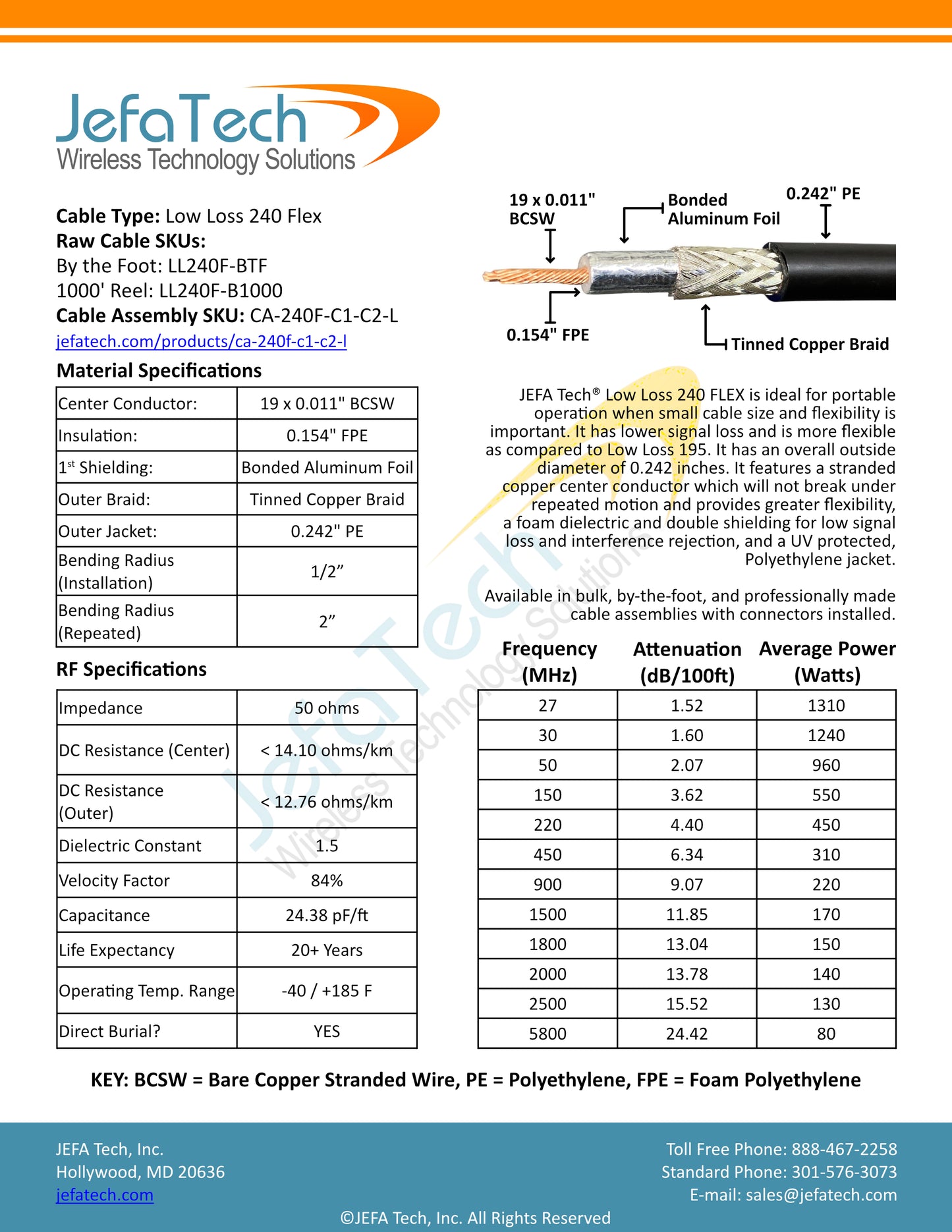

See spec sheet for cable dimensions and full attenuation ratings.




QUALITY AND PERFORMANCE: This cable is professionally assembled and tested in our manufacturing facility in Maryland, USA! We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.

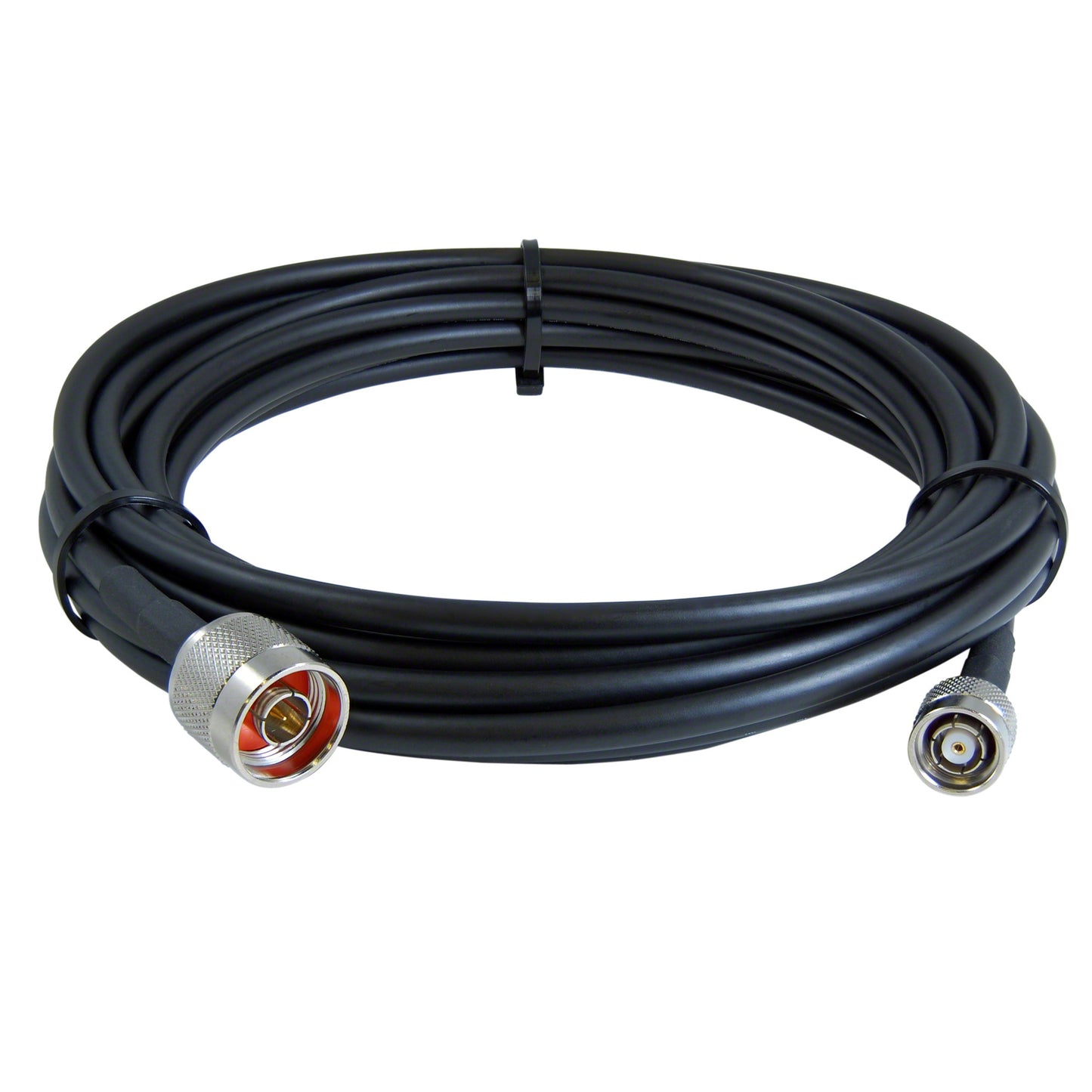

PRODUCTION DETAILS: You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.

We use Agilent N9912A RF Analyzers for cable sweep testing.

SAME DAY SHIPPING: These cables are built-to-order. We have an optimized production line for these assemblies so most orders will ship the same day!

CUSTOM PACKAGING, LABELING, BUNDLING, BARCODING: We can further customize your cable.  Click here for options.

RETURN POLICY:
Since these cables are built-to-order, they are not returnable if you make a mistake when choosing the connector types or length. To see pictures of connectors, please see the connector identifier link at the top of the website. If you need assistance, please contact us.



Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
John E.
Thank you

Hi team at JefaTech,

Just a quick thank you for your quality product of RG-8X (LMR240) that arrived today - this is my second order of cable from you.

I'll be making another order in the near future for some LMR400 flex.

Keep up the good work and the first class service.

Kind regards from Australia,
John E.

R
Rich
The best 240 wire

It's very nice to have a foil shield that peels back easy, no one else comes close. Before I bought your 240 I bought one from Times Microwave and the foil is baked on so hard you cannot peal it back at all. I had the seller and the Microwave rep say why would I want to peal it back? I could not believe I had to explain to them that you don't want the center pin in a 259 connector to touch the foil and short out expensive equipment, that you need a little 1/8 insulator showing - without the foil - for insurance it does not touch the center pin, and I also said the Microwave outer covering is made out of rubber, and pulling it lightly through a hole into the house ruined the wire, it easily snags with little resistance in the hole and folds over itself into a ripple, than bunches up and the wire is ruined. I asked the Microwave rep do you have the harder plastic to put on the outer shell and he said yes we do but we don't put it on the 240 he said that's what you get. I told him that wire is junk as far as I'm concerned. Than found you guys this is the best 240 I've had so far. The pure copper center I was looking for and a foil that was not welded to the insulator, Very nice to work with. Good job on the 240 wire, the best I've seen so far. Keep up the good work. I've told a bunch of ham operators how nice it is since I got the sample kit, I have nothing but good to say about it. Thanks again.
